Yoshitake EB-2J and EB-2JL are double-type bellows expansion joints designed for steam, air, cold and hot water, oil, and other non-dangerous fluids. They feature a simple structure where the flange, short pipe, and bellows are united, offering excellent durability with stainless steel wetted parts. The EB-2JL model utilizes a loose flange on the end connection to absorb bolt hole displacement.

Features

1. Conforms to Japanese Industrial Standard JIS B 2352 (bellows type expansion joints: application A).
2. Packing is not used, so retightening or replacement due to aging is not required, enabling easy maintenance and management.
3. Simple structure since flange, short pipe and bellows are united.
4. Outer pipe is attached in order to protect the bellows from damage due to external impact.
5. Stainless steel inner pipe is attached in order to prevent fluid pressure loss, vibration, impact, corrosion, etc.
6. Stainless steel made wetted parts offer high resistance to corrosion and ensures distinguished durability.
7. EB-1JL and 2JL use a loose flange on the end connection and can absorb the displacement of the circumference side of the bolt hole.

Specifications

Model	EB-1J	EB-1JL	EB-2J	EB-2JL
Application	Steam, Air, Cold and hot water, Oil, Other non-dangerous fluids
Maximum pressure	1.0 MPa
Max. temperature	220°C
Max. axial extension	35 mm (Expansion 10 mm, Compression 25 mm)		70 mm (Expansion 20 mm, Compression 50 mm)*
Material (Outer pipe)	Carbon steel
Material (Bellows, inner pipe)	Stainless steel (SUS316L)
Connection	JIS 10K FF flanged	JIS 10K loose flanged	JIS 10K FF flanged	JIS 10K loose flanged

Notes

• Expansion of one side from the centering anchor base is 10 mm and compression is 25 mm.
• Available with all stainless steel made.
• Available with nominal size from 300A to 450A. (Single type: EB-3, Double type: EB-4)

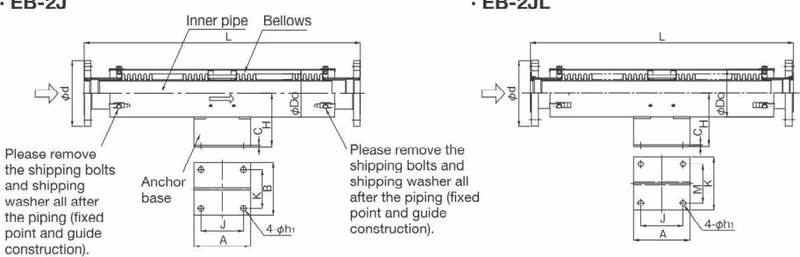

Dimensions and Weights

Nominal size	L	Max. operating length	Min. operating length	Max. axial extension δ	Do	d	H	J	K	A	B	C	h1	Bolt size	Weight (kg)
20A	680	700	630	70	58.2	100	100	100	60	135	95	3.2	12	M10	4.6
25A	680	700	630	70	58.2	125	100	100	60	135	95	3.2	12	M10	5.5
32A	680	700	630	70	73.2	135	120	100	70	135	95	3.2	12	M10	6.8

(For complete dimensional details across all sizes, please refer to the table image below)
