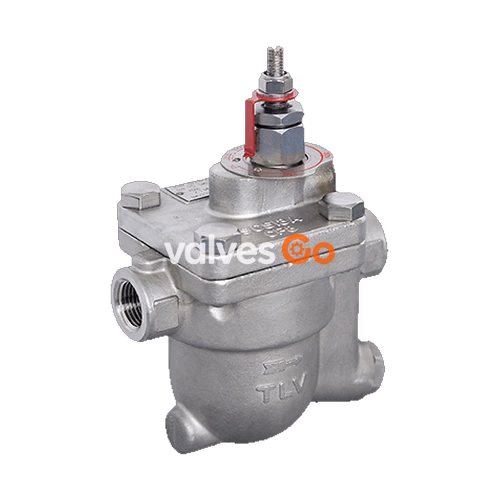

TLV J3S-X-RV is a reliable and durable stainless steel bypass blowdown steam trap (free float steam trap with X-element). It is designed to eliminate steam locking on cylinder dryers, presses, and other steam-using equipment prone to steam-locking, while providing continuous, smooth, low velocity condensate discharge as process loads vary.

The trap integrates a regulation valve into the cover, which can be adjusted from 0% to 100% aperture to combat steam locking due to equipment conditions or to perform bypass blowdown to reduce start-up times.

Features

• Integrated Regulation Valve: Aperture of the regulation valve incorporated into the cover can be adjusted to combat steam locking. The valve aperture indicator shows how far open the valve is from 0 to 100%.
• Bypass Blowdown: Regulation valve can be used for bypass blowdown to reduce start-up times.
• Self-Modulating Free Float: Provides continuous, smooth, low velocity condensate discharge.
• Reliable Sealing: Precision-ground float, constant water seal, and three-point seating design ensure a steam-tight seal even under no-load conditions.
• Thermostatic Air Venting: Thermostatic capsule (X-element) with "fail open" feature vents air automatically until close-to-steam temperature.

Specifications

Operating Limits

To avoid abnormal operation, accidents or serious injury, DO NOT use this product outside of the specification range. DO NOT use this product in excess of the maximum operating pressure differential; such use could make discharge impossible (blocked).

Model	J3S-X-RV
Connection	Screwed, Flanged
Size	Screwed: 1/2", 3/4", 1" Flanged: DN 15, 20, 25
Orifice No.	2, 5, 10, 21
Maximum Operating Pressure (PMO)	2, 5, 10, 21 barg
Maximum Differential Pressure (ΔPMX)	2, 5, 10, 21 bar
Maximum Operating Temperature (TMO)	220°C
Subcooling of X-element Fill	Up to 6°C
Type of X-element	C6

Pressure Shell Design Conditions (Not Operating Conditions):

• Maximum Allowable Pressure (PMA): 21 barg
• Maximum Allowable Temperature (TMA): 220°C
• Minimum Allowable Temperature: -40°C

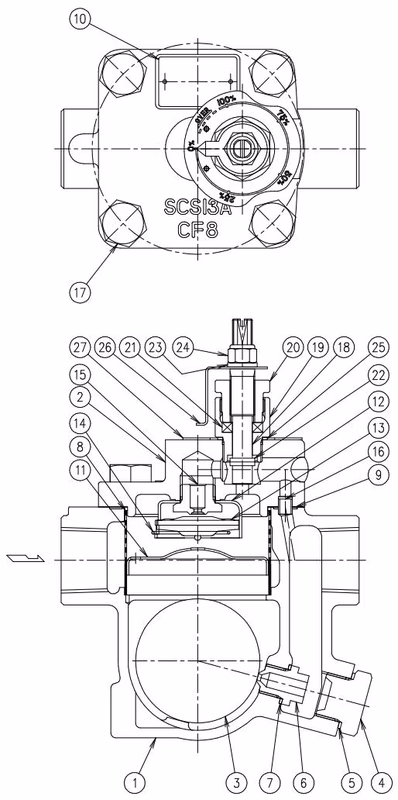

Materials

• Body & Cover: Cast Stainless Steel A351/A351M Gr.CF8 or CF8M
• Float: Stainless Steel SUS316L (AISI316L)
• Orifice Plug: Cast Stainless Steel A351/A351M Gr.CF8 or CF8M
• Screen: Stainless Steel SUS430/304 (AISI430/304)
• Gaskets: Fluorine Resin PTFE, Stainless Steel SUS316L

Pressure Equipment Directive (PED)

Classification according to PED 2014/68/EU, fluid group 2:

• Size DN 15 to DN 25: Art. 4, Sec. 3 (sound engineering practice), CE marking not allowed.

Dimensions

Screwed Connection

Size	L (mm)	H (mm)	H1 (mm)	W (mm)	Weight (kg)
1/2"	120	170	75	80	2.8
3/4"	120	170	72.5	80	2.9
1"	120	177	75	80	3.1
(H dimension is at full open position)

Flanged Connection

DN	L (DIN PN25/40)	L (ASME 150RF)	L (ASME 300RF)	H (DIN)	H (ASME)	H1 (mm)	Weight (kg)
15	150	175	175	170	170	75	3.7
20	150	195	195	170	170	75	4.6
25	160	215	219	170	170	75	5.2
(Weight is for PN 25/40)

Discharge Capacities

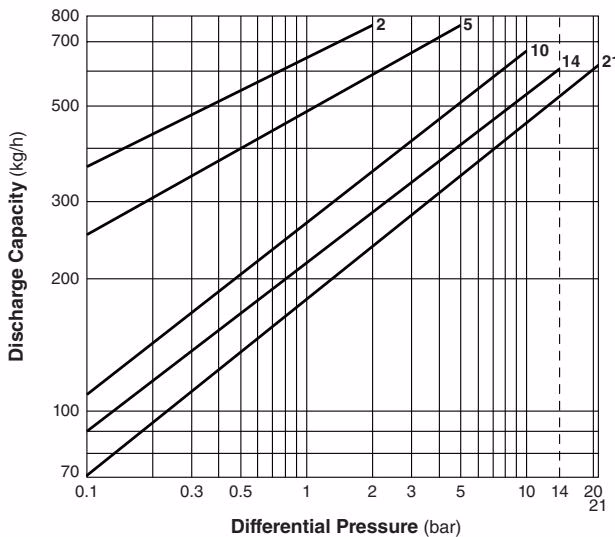

Steam Trap Discharge Capacity

1. Line numbers within the graph are orifice numbers.
2. Differential pressure is the difference between the inlet and outlet pressure of the trap.
3. Capacities are based on continuous discharge of condensate 6°C below saturated steam temperature.
4. Recommended safety factor: at least 1.5.

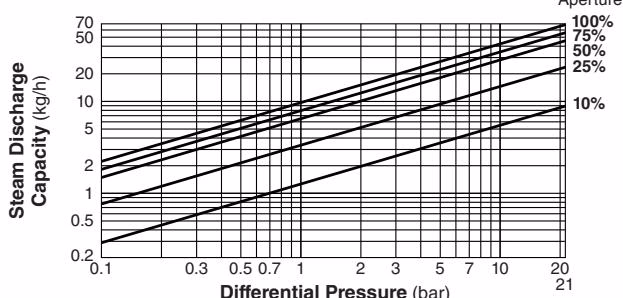

Bypass Capacity (Regulation Valve)

• Water discharge capacities are based on continuous discharge of water at room temperature (Aperture: 100%) and are applicable for temperatures below 100°C.
• Discharge capacities for steam and water are the values for the regulation valve, not for the X-element. X-element values are not included.

Operating Instructions

Safety Warning

NEVER apply direct heat to the float. The float may explode due to increased internal pressure, causing accidents leading to serious injury or damage to property and equipment. Use gloves when operating the regulation valve and keep all body parts well clear of the product.

When using to eliminate steam locking, the steam discharge quantity can be adjusted by using the graph to find out what valve aperture corresponds to your desired steam discharge quantity and differential pressure, then using the valve aperture indication plate to set the valve aperture to the value taken from the graph.

When using the bypass blowdown function, the valve should normally be set to the full open position during use and then returned to the full close position when bypass blowdown is complete.

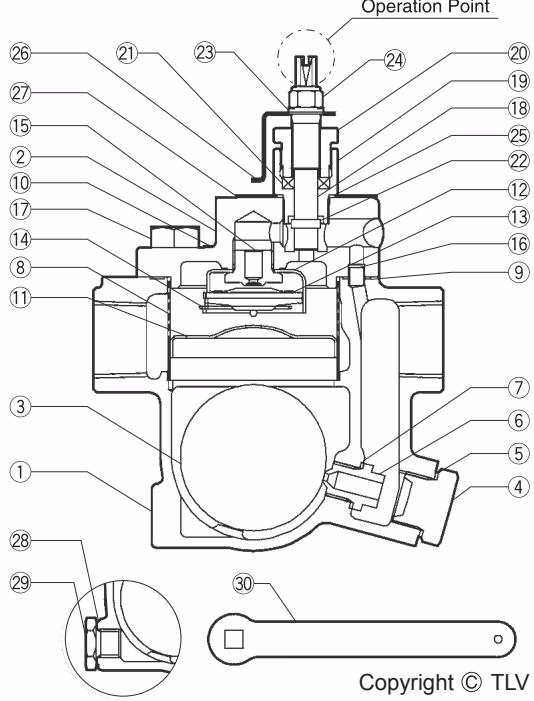

To adjust the aperture of the regulation valve, turn only the valve operation point at the very top of the valve using the handle (option), a flat-head screwdriver, or open-ended wrench. DO NOT turn the locknut, gland case, or gland retainer nut. Fluid may be discharged under pressure, leading to burns or other injury or damage.
