PN100

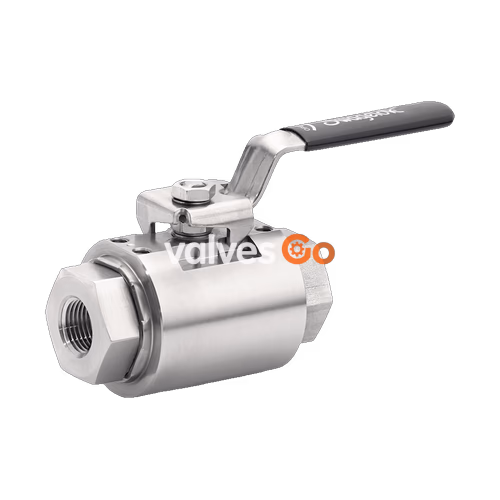

Swagelok SS-8GBS8 is a 2-way straight pattern Stainless Steel General Service GB Series Ball Valve. It is equipped with reinforced PEEK seats, a 316 stainless steel body, and 1/2 in. Swagelok tube fitting end connections.
Specifications
| Specification | Value |
|---|---|
| Body Material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | Swagelok® Tube Fiting |
| CV Maximum | 7 |
| Handle Color | Black |
| Handle Style | Lever |
| Low Emissions Certified | Yes |
| Room Temperature Pressure Rating | 6000 PSIG @ 100°F /413 BAR @ 37℃ |
| Seat Material | PEEK |
| Seat Spring Material | 316 Stainless Steel |
| Service Class | General |
| Stem Bearing Material | PEEK |
| Testing | Testing according to WS-22 |
| eclass (4.1) | 37010401 |
| eClass (5.1.4) | 37010401 |
| eClass (6.0) | 37010401 |
| eClass (6.1) | 37010401 |
| eClass (10.1) | 37010401 |
| UNSPSC (4.03) | 40141607 |
| UNSPSC (10.0) | 40141607 |
| UNSPSC (11.0501) | 40141607 |
| UNSPSC (13.0601) | 40141607 |
| UNSPSC (15.1) | 40141607 |
| UNSPSC (17.1001) | 40141600 |
WARNING
Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
