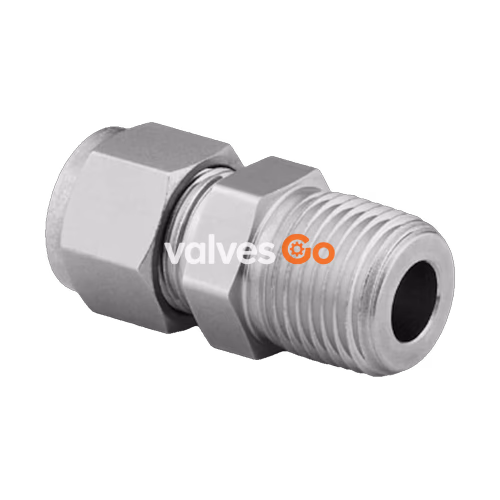

Swagelok SS-810-1-4SC11 is a 316 stainless steel male connector featuring a 1/2 in. tube OD to a 1/4 in. male NPT connection, processed with SC-11 special cleaning and packaging. It delivers a reliable, leak-tight seal with strong tube grip and powerful vibration resistance. The outstanding reliability of Swagelok tube fittings is proven by over 65 years of successful application and documented in extensive public test reports, including those conducted under extreme conditions.

Specification	Value
Body Material	316 Stainless Steel
Straight-Through Bore	No
Cleaning Process	Special Cleaning and Packaging (SC-11)
Connection 1 Size	1/2 in.
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	1/4 in.
Connection 2 Type	Male NPT
Flow Restrictor	No
eClass (4.1)	37030703
eClass (5.1.4)	37020590
eClass (6.0)	37020590
eClass (6.1)	37020590
eClass (10.1)	37020590
UNSPSC (4.03)	40141719
UNSPSC (10.0)	40142613
UNSPSC (11.0501)	40142613
UNSPSC (13.0601)	40183110
UNSPSC (15.1)	40183110
UNSPSC (17.1001)	40183110
