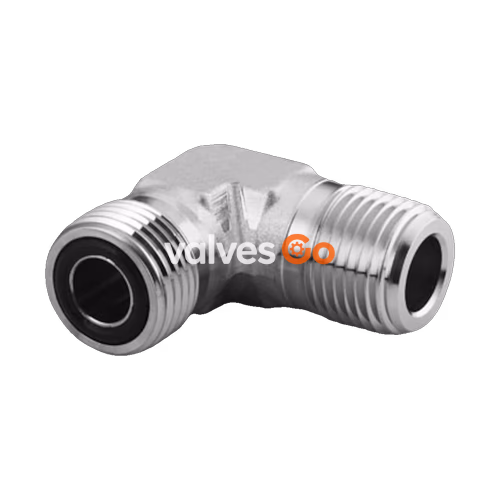

The Swagelok SS-8-VCO-2-8 is a 90° elbow featuring a 1/2 in. VCO® O-ring face seal fitting to a 1/2 in. male NPT connection. Manufactured from 316 stainless steel, this fitting enables compact, leak-tight directional changes with repeatable O-ring sealing—ideal for high-purity, space-constrained instrumentation systems.

Specifications

Specification	Value
Body Material	316 Stainless Steel
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1	1/2 in. VCO® O-Ring Face Seal Fitting
Connection 2	1/2 in. Male NPT
Flow Restrictor	No
Lubricant	Dow Corning 111

WARNING

Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
