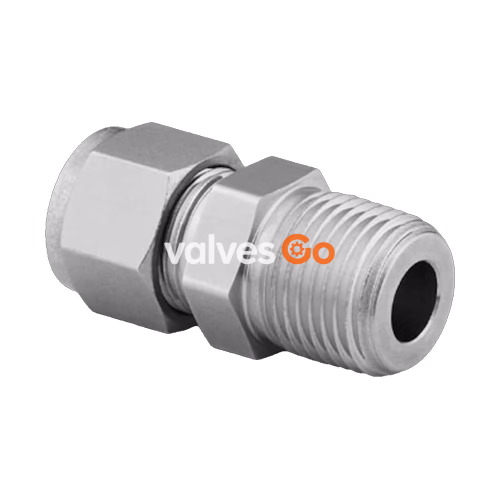

Swagelok SS-600-1-2RT is a 316 stainless steel tube fitting with a male connection. It features a 3/8 in. Swagelok tube fitting on one end and a 1/8 in. ISO tapered male thread on the other end. This fitting offers strong tube grip and vibration resistance, enabling reliable leak-tight performance that has been proven over 65 years of successful experience.

Specifications

Specification	Value
Body Material	316 Stainless Steel
Straight Through Bore	No
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	3/8 in.
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	1/8 in.
Connection 2 Type	ISO Tapered Male Thread
Flow Restrictor	No
eClass (10.1)	37020590
UNSPSC (17.1001)	40183110

System Design and Safe Product Selection

To ensure safe product selection, the complete catalog contents must be reviewed. The total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
