Brass

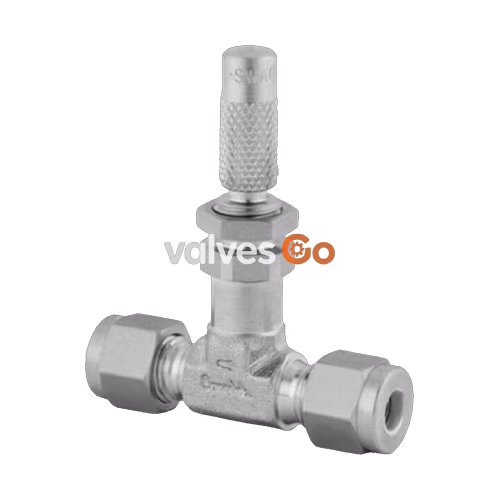

Swagelok B-SS4 straight pattern, low-flow metering valve makes fine adjustments in low- or high-pressure, and low-, medium-, or high-flow applications. It delivers accurate flow control when it matters in situations such as analytical or research applications.
| Specifications | |
|---|---|
| Body Material | Silver-Mist Chrome-Plated Brass |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 size | 1/4 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| CV Maximum | 0.004 |
| Handle Style | Knurled |
| Maximum Temperature, °F (℃) | 300 (148) |
| Minimum Temperature, °F (℃) | -10 (-23) |
INFO
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
WARNING
Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
