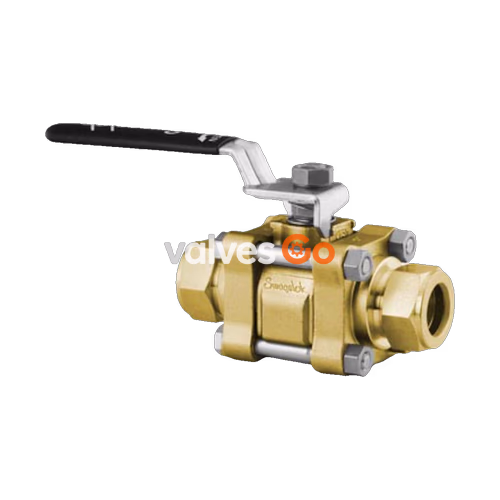

Swagelok B-63TS10 is a brass 2-way valve with 5/8 in. Swagelok tube fittings, reinforced PTFE seats, a lever handle, and a 1500 psig rating. It provides reliable shutoff for general service applications.

2-Way Straight Pattern

Quarter-turn ball valves offer versatile actuation and are available in multiple alloys. A range of configurations are available, including optional vent porting.

Specifications

Specification	Value
Ball/Stem Material	Brass
Body Material	Brass
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	5/8 in.
Connection 1 Type	Swagelok® Tube Fitting
Connection 2 Size	5/8 in.
Connection 2 Type	Swagelok® Tube Fitting
CV Maximum	12
Fastener Material	Carbon Steel
Flange Seal Material	Fluorocarbon FKM
Flow Pattern	2-Way, Shutoff Straight
Handle Color	Black
Handle Style	Lever
Low Emissions Certified	Yes
Room Temperature Pressure Rating	1500 PSIG @ 100°F / 103 BAR @ 37℃
Seat Material	Reinforced PTFE
Seat Spring Material	316 Stainless Steel
Service Class	General
Stem Bearing Material	PEEK
Testing	Testing according to WS-22
eClass (4.1)	37010401
eClass (5.1.4)	37010401
eClass (6.0)	37010401
eClass (6.1)	37010401
eClass (10.1)	37010401
UNSPSC (4.03)	40141607
UNSPSC (10.0)	40141607
UNSPSC (11.0501)	40141607
UNSPSC (13.0601)	40141607
UNSPSC (15.1)	40141607
UNSPSC (17.1001)	40183104
