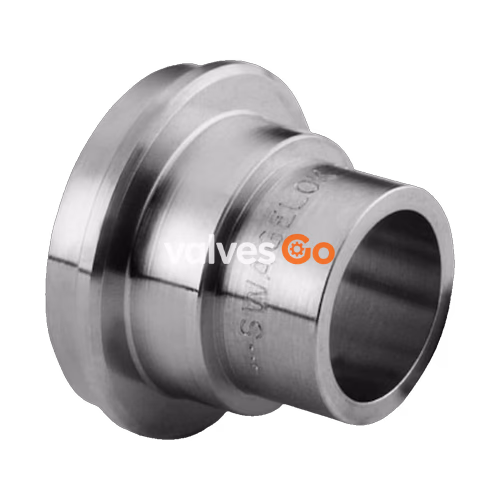

The Swagelok 6LV-8-VCR-3S-8TB3P 316L VAR VCR gland features a 1/2 in. VCR metal gasket face seal and a 1/2 in. tube butt weld connection. Using Swagelok VCR® metal gasket face seals allows for a secure connection while maintaining the high purity of a metal-to-metal seal. The fitting is SC-01 ultrahigh-purity cleaned and electropolished for demanding applications.

Specifications

Specification	Value
Body Material	316L VAR
Cleaning Process	Ultrahigh-Purity Process Specification (SC-01)
Connection 1 Size	1/2 in.
Connection 1 Type	VCR® Metal Gasket Face Seal Gland
Connection 2 Size	1/2 in.
Connection 2 Type	Tube Butt Weld
Feature	Electropolished
Flow Restrictor	No
